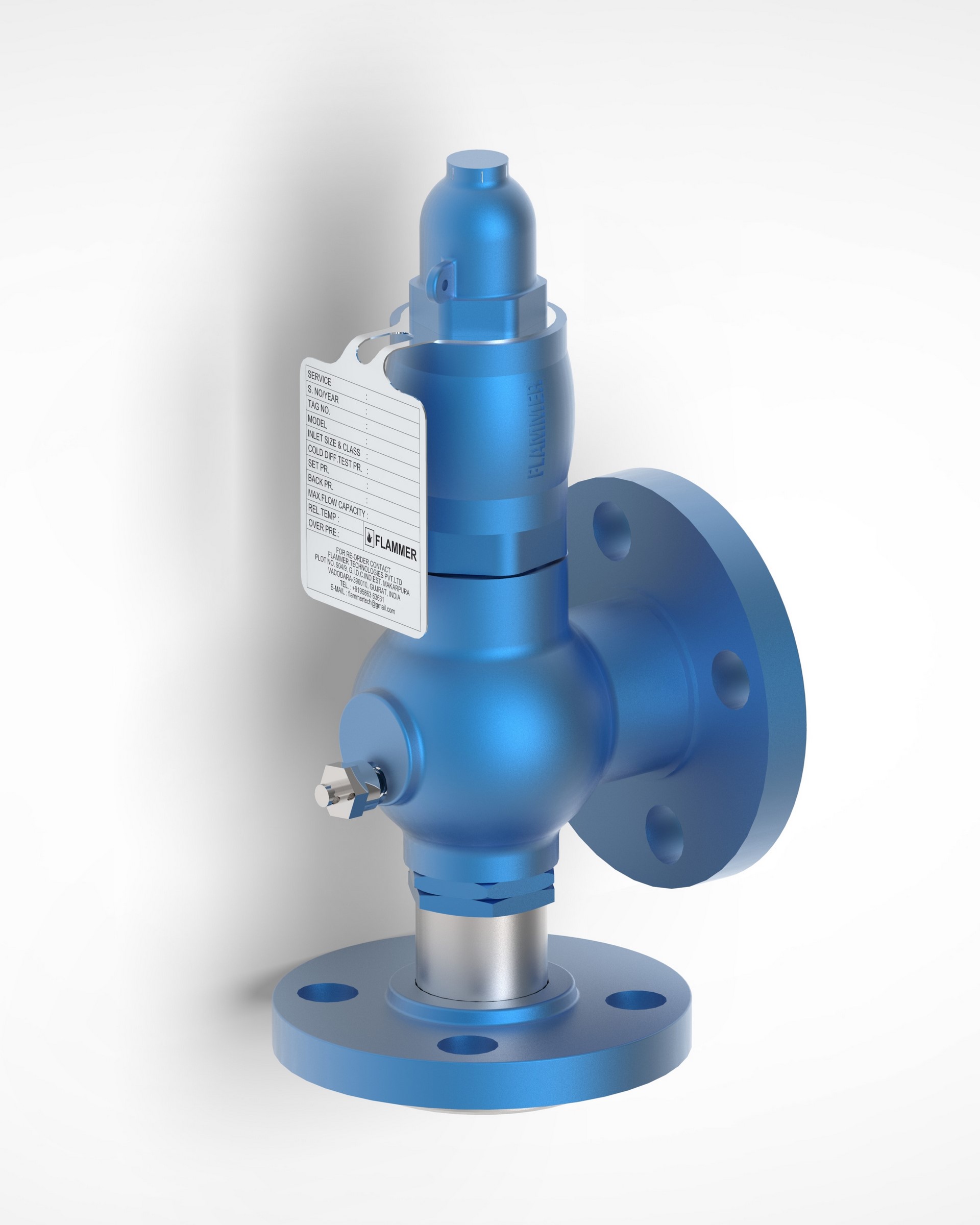

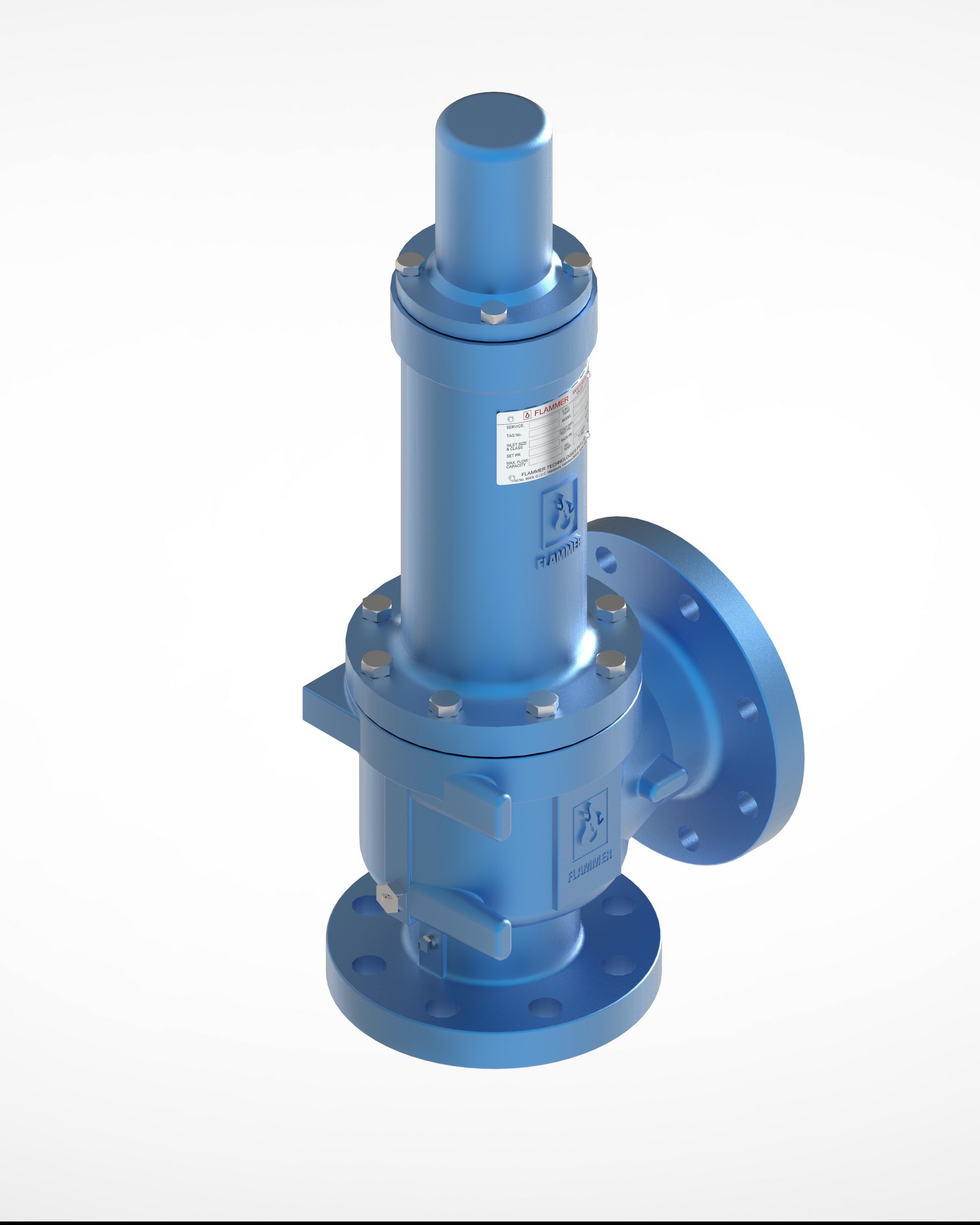

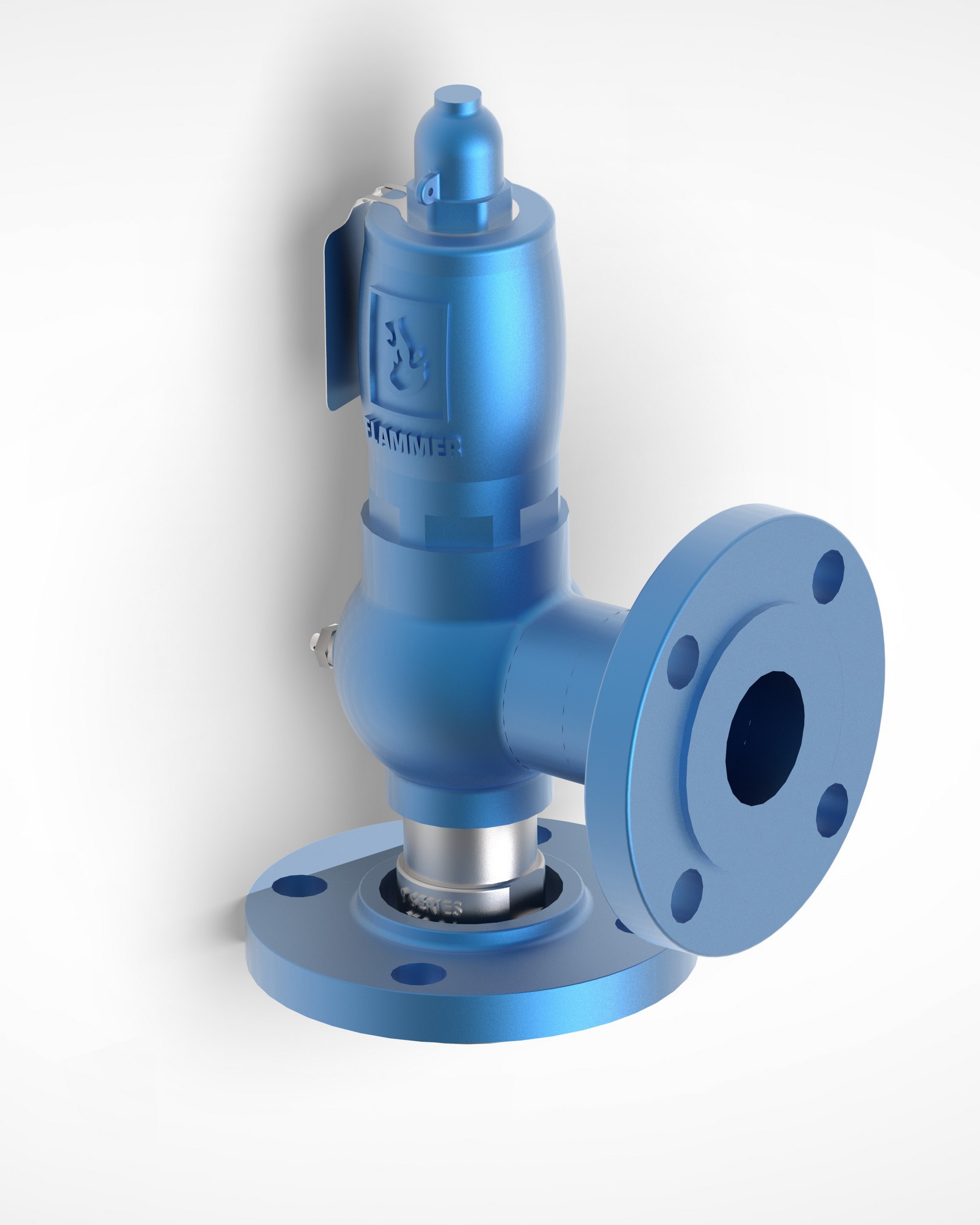

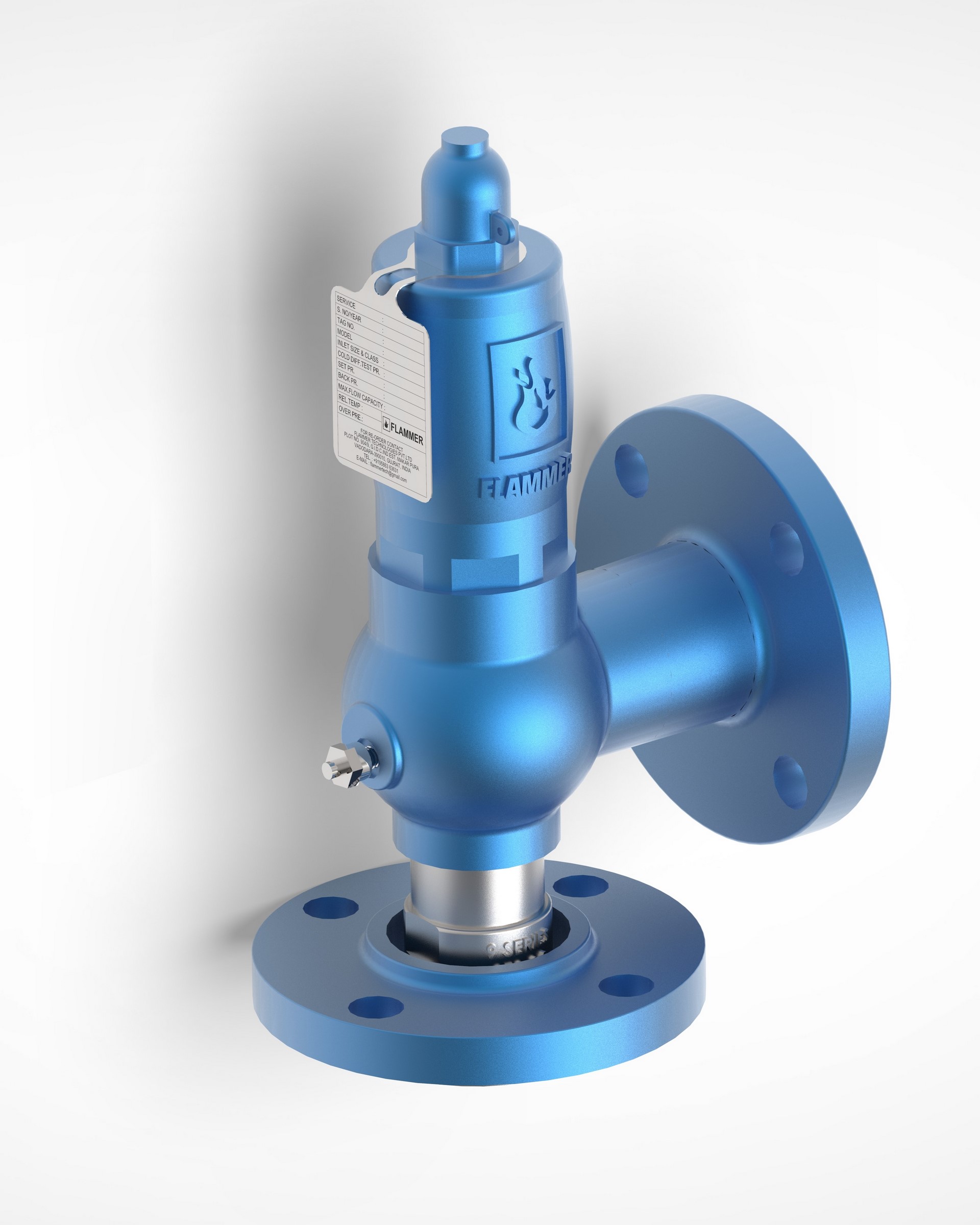

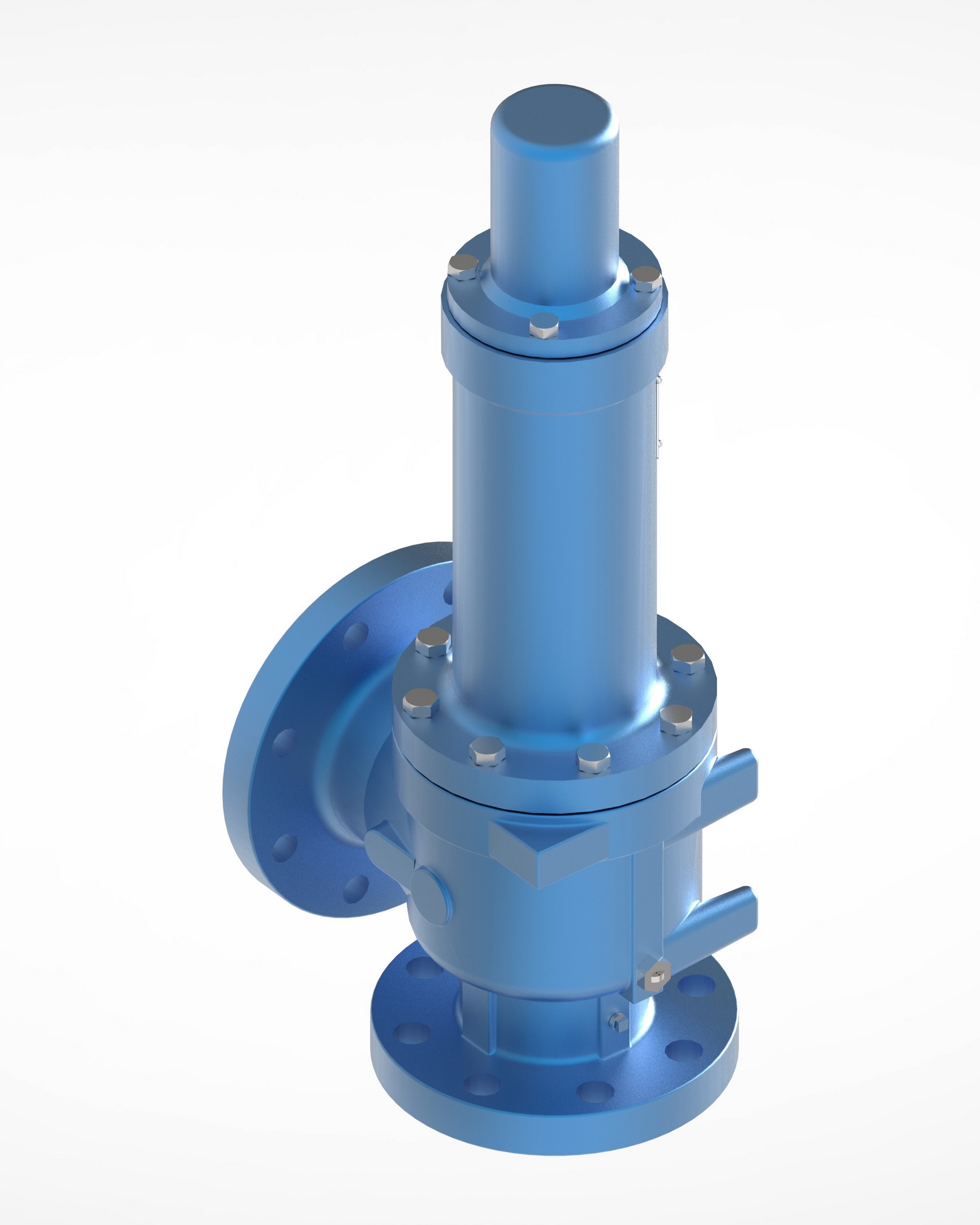

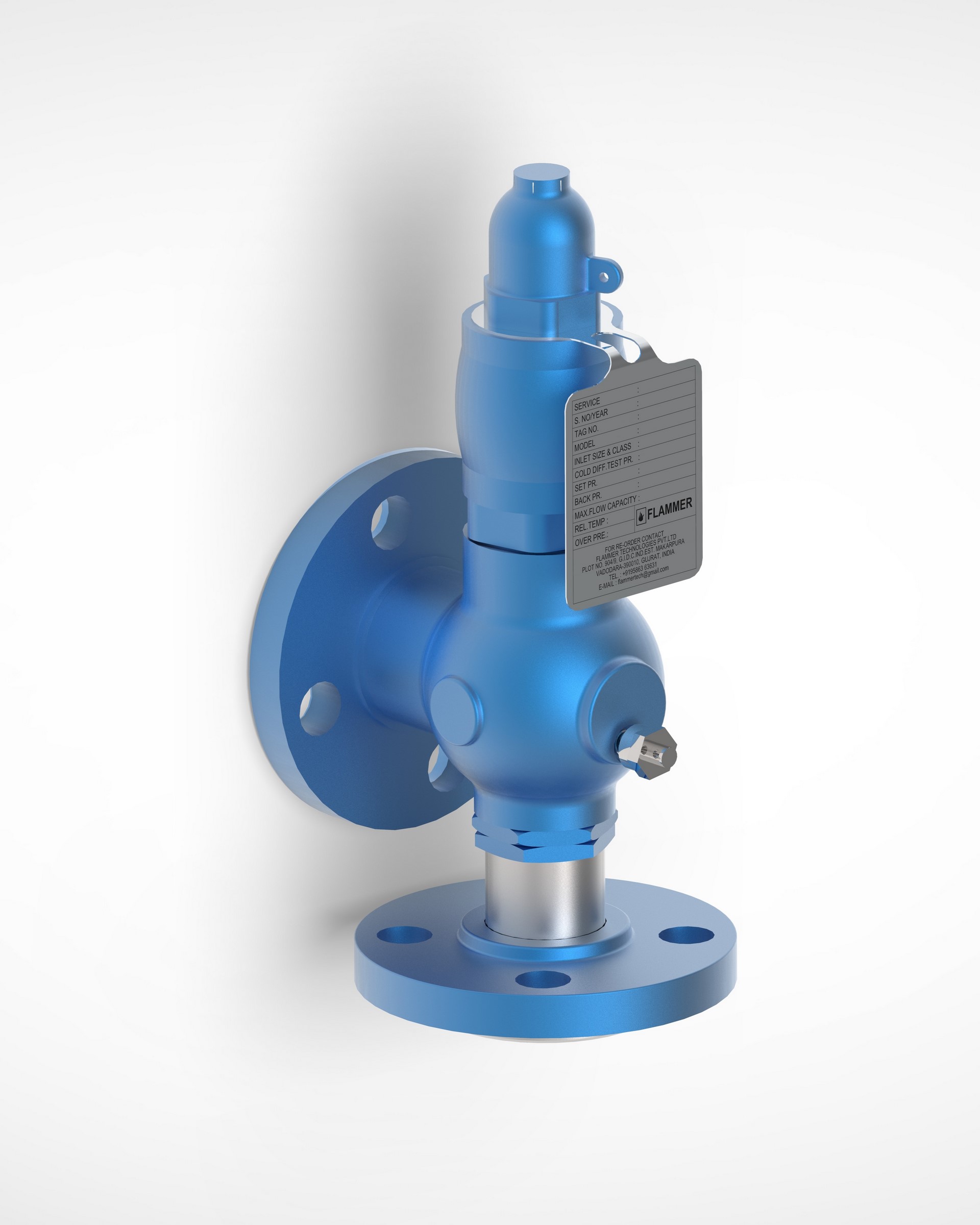

The 9 Series Pressure Safety Valve is a high-performance safety device designed to protect pressurized systems from overpressure conditions. These valves automatically release pressure when the system exceeds a predetermined set point, ensuring the safety and integrity of equipment and personnel. The 9 Series is ideal for various industrial applications, including oil and gas, chemical processing, power generation, and more.
Minimizes the risk of overpressure and ensures compliance with safety regulations.
Versatility allows for use in a broad range of industrial processes.
Enhances the valve's longevity and performance in corrosive conditions.
Tailored solutions to meet specific application requirements.
Ensures system efficiency and reduces the risk of hazardous emissions.
Provides flexibility during installation, ensuring compatibility with existing setups.
Multi-layer construction for corrosive materials and PTFE liners or coatings.
Prevents potential damage and ensures the safety of the system.
| Feature | Description |
|---|---|
| Pressure Range | 15 psi to 6000 psi (1.03 bar to 413.69 bar) |
| Temperature Range | -320°F to 750°F (-196°C to 400°C) |
| Materials | Stainless Steel, Brass, Hastelloy, Monel |
| Connections | Flanged, Threaded, Welded |
| Size Range | 1/4 inch to 6 inches |
| Seat Options | Metal-to-Metal, Soft Seat (PTFE, Viton) |
| Spring Materials | Inconel, Stainless Steel, Hastelloy |
| Certifications | ASME Section VIII, API 526, PED |
| Set Pressure Tolerance | +/- 3% |
| Back Pressure Tolerance | 10% of set pressure for conventional valves, 50% for balanced valves |
| Blowdown | Adjustable (Typically 7-10% of set pressure) |
| Material | Corrosion Resistance | Temperature Resistance | Typical Applications |
|---|---|---|---|
| Stainless Steel | Excellent | -320°F to 750°F (-196°C to 400°C) | Chemical processing, pharmaceuticals |
| Brass | Good | -320°F to 400°F (-196°C to 204°C) | Water, steam, non-corrosive gases |
| Hastelloy | Superior | -320°F to 750°F (-196°C to 400°C) | Harsh chemical environments, corrosive gases |
| Monel | Excellent | -320°F to 750°F (-196°C to 400°C) | Marine applications, corrosive liquids |
Installation:
Maintenance:
