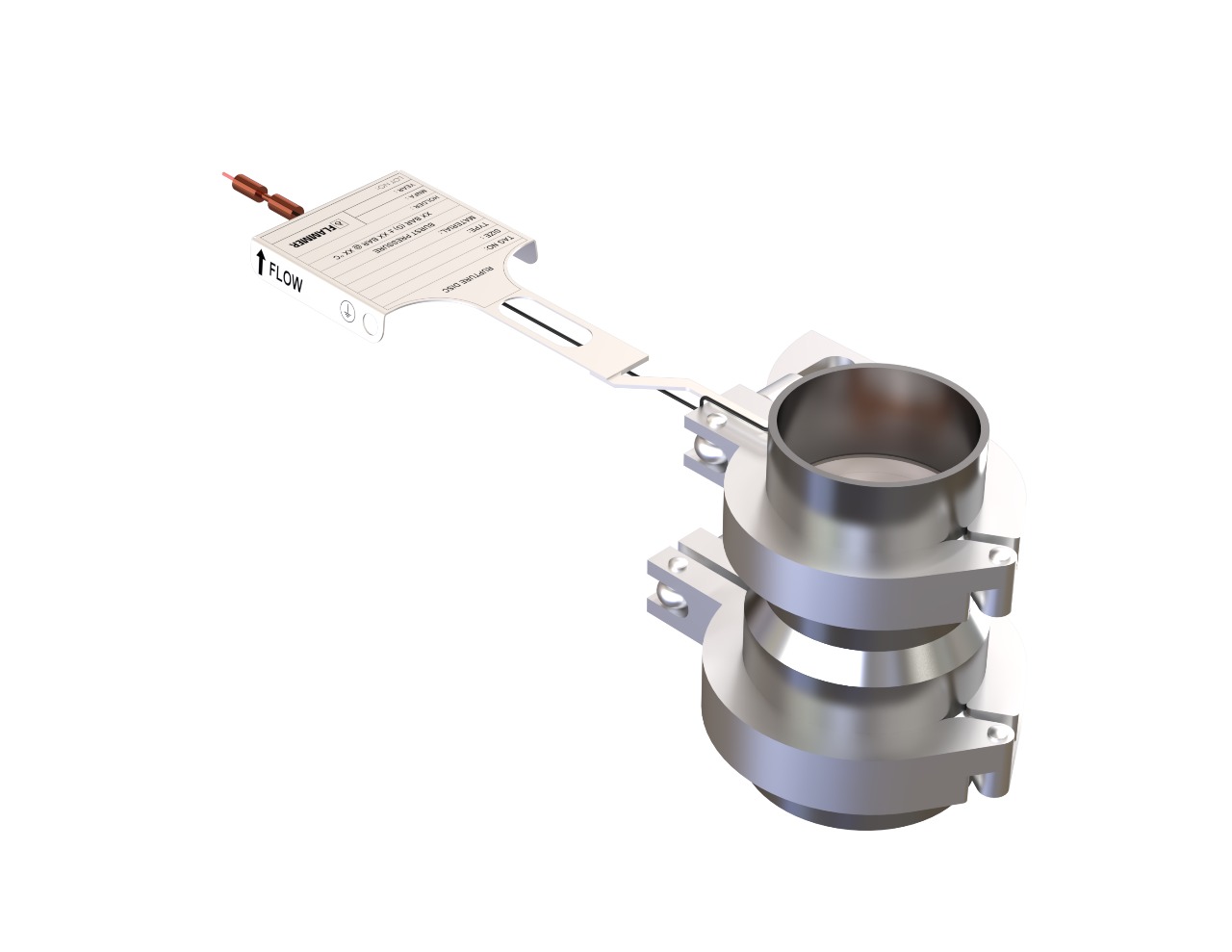

The XRC-W Series Rupture Disc is specifically designed for clean and sanitary applications, making it ideal for industries like pharmaceuticals, food and beverage processing, biotechnology, and any other process where hygiene and cleanliness are critical. This rupture disc ensures a sterile environment by preventing any potential contamination from disc fragmentation or material shedding.
Prevents contamination by ensuring the disc doesn't break into fragments.
Performs well in liquid, gas, or two-phase applications; withstands full vacuum.
Operates at 90-95% of its burst pressure, ensuring reliable performance.
Optimized for Clean-In-Place (CIP) and Sterilization-In-Place (SIP) processes.
Only the smooth side of the disc faces the process medium, reducing product buildup.
Fits standard Tri-clamp/Tri-clover fittings.
Made from SS316/316L stainless steel or Hastelloy C276.
Available in sizes from 1" (25mm) to 4" (100mm).
| Nominal Size (in/mm) | Min Burst Pressure (psig/bar) | Max Burst Pressure (psig/bar) | Max Pressure (psig/bar) | Weight (lb/kg) | Ferrule OD (in/mm) | Tube ID (in/mm) |
|---|---|---|---|---|---|---|
| 1″ (25mm) | 83 (5.72) | 88 (6.07) | 300 (20.69) | 0.36 (2.3) | 1.984 (50.4) | 0.856 (21.7) |
| 1-1/2″ (40mm) | 27 (1.86) | 30 (2.07) | 250 (17.24) | 0.94 (6.0) | 1.984 (50.4) | 1.356 (34.4) |
| 2″ (50mm) | 24 (1.66) | 27 (1.86) | 180 (12.41) | 1.79 (11.5) | 2.516 (63.9) | 1.856 (47.1) |
| 3″ (80mm) | 20 (1.38) | 22 (1.52) | 120 (8.28) | 4.34 (27.9) | 3.579 (90.9) | 2.865 (72.5) |
| 4″ (100mm) | 18 (1.24) | 20 (1.38) | 80 (5.52) | 7.80 (50.3) | 4.682 (118.9) | 3.810 (96.8) |
Gasket Material
| Material | Maximum Temperature |
|---|---|
| Black Buna-N | Up to 149°C (300°F) |
| White Buna-N | Up to 149°C (300°F) |
| Black EPDM | Up to 150°C (300°F) |
| Black Viton | Up to 204°C (400°F) |
| Clear Silicone | Up to 204°C (400°F) |
| Red Silicone | Up to 204°C (400°F) |
| PTFE (Teflon) | Up to 260°C (500°F) |
