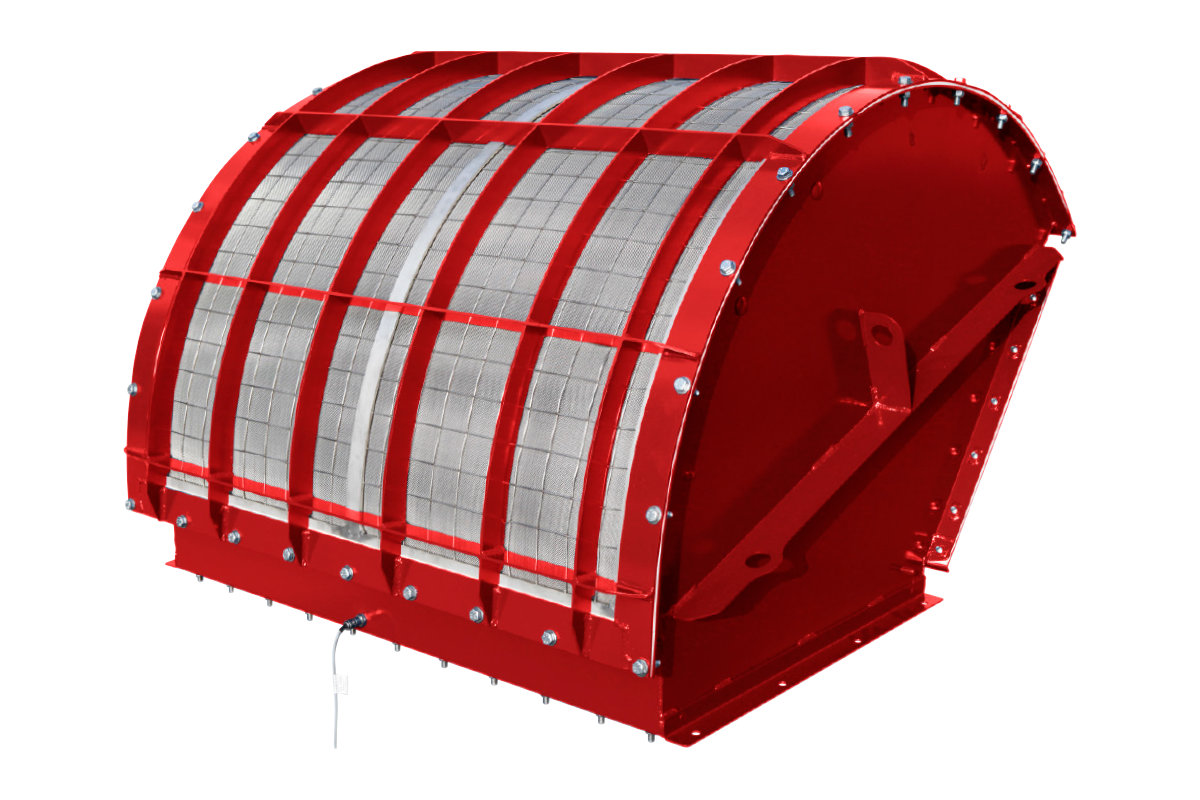

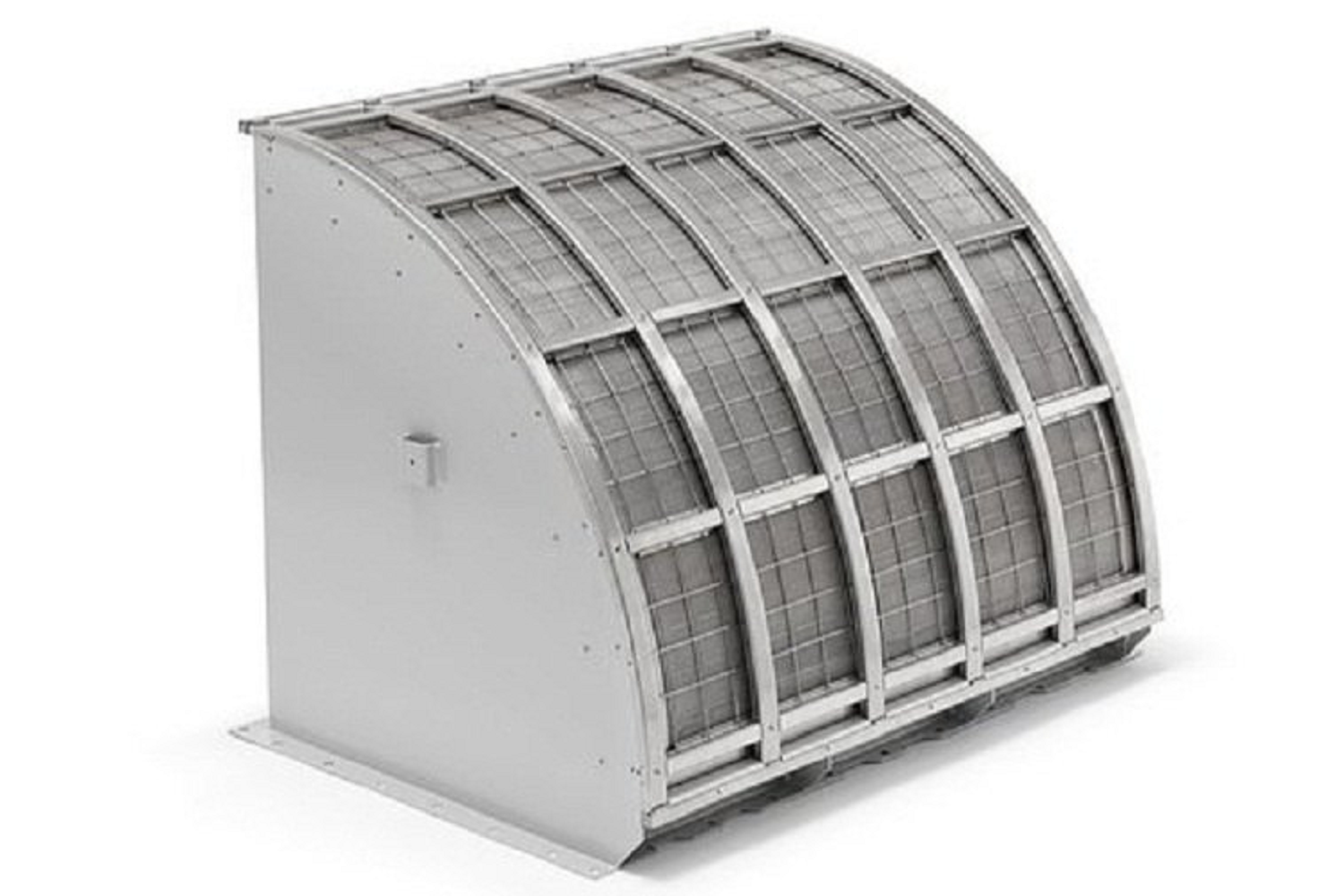

Introduction: A Flameless Explosion Vent is a critical safety device designed to protect industrial equipment and facilities from the devastating effects of explosions. Unlike traditional explosion vents that release pressure and flame into the surrounding environment, flameless explosion vents contain and extinguish the flame within the vent, ensuring that no flames or hazardous materials escape. This makes them ideal for use in indoor environments or areas where the release of flames is unacceptable.
How It Works: The flameless explosion vent operates by rapidly relieving pressure from an explosion within a protected enclosure while simultaneously quenching the flame. It consists of a traditional explosion vent and a flame arrester mesh or quenching element. When an explosion occurs, the vent opens to relieve the pressure, and the flame arrester absorbs the heat and cools the gases to prevent the flame from escaping.
Effectively quenches and contains flames within the device, preventing the release of fire and hazardous materials into the surrounding environment.
Rapidly relieves pressure build-up during an explosion, protecting equipment and facilities from structural damage.
Features a space-saving design, making it suitable for installation in confined areas where traditional explosion venting to the outside may not be feasible.
Can be installed in both horizontal and vertical orientations, providing flexibility in various industrial applications.
Requires minimal maintenance after installation, with robust construction designed for long-term use. Periodic inspections are typically sufficient.
Constructed from high-quality materials such as stainless steel and carbon steel, ensuring durability and resistance to corrosion in harsh environments.
Equipped with a stainless steel mesh or other flame arrester elements that efficiently absorb heat and cool gases to extinguish flames.
Meets stringent industry standards, including ATEX, NFPA, CE, and VDI, ensuring reliable performance and regulatory compliance.
| Feature | Specification |
|---|---|
| Product Name | Flameless Explosion Vent |
| Material | Stainless Steel, Carbon Steel |
| Size Range | Varies by model (customizable sizes available) |
| Maximum Operating Pressure | Up to 2 bar (29 psi) |
| Maximum Burst Pressure | Typically 0.1 – 0.5 bar (1.5 – 7 psi) |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Explosion Vent Type | Domed, Flat, Composite |
| Quenching Element | Stainless Steel Mesh |
| Flow Capacity | Varies by size (Refer to manufacturer’s chart) |
| Certification | ATEX, NFPA, CE, VDI |
| Application | Indoor applications, Dust collectors, Silos, Filters |
| Installation | Horizontal or vertical mounting |
| Maintenance | Minimal; Inspect periodically for integrity |
| Weight | Varies based on size and material |
| Service Life | Designed for long-term use with regular inspection |
| Testing | Factory tested for pressure relief and flame quenching |
| Compliance | Meets OSHA and other relevant safety standards |
